FCT-01
Catheter Flow Rate and Pressure Tester
FCT-01 Catheter Flow Rate and Pressure Tester During Power Injection adopts the principle of high-pressure hydraulic test, which applies pressure to the test sample through constant water pressure, and maintains it for a certain period of time to test the flow and pressure of the sample under this condition. FCT-01 is suitable to the determination of flow rate and pressure of medical sterile catheters.
Share:
Product Features
Professionalism
7 inch colourful touch screen with intelligent data processing function
Dual test modes: constant pressure and constant flow rate
Equipped with a temperature control system to provide the required temperature environment for testing simulated liquids
Equipped with protective devices to prevent liquid splashing
Self-developed liquid booster pump, no need air source, stable testing
Connecting tubes of different specifications can be replaced to meet standard requirements
Standard Luer interface is used to test various catheters
Built-in high-pressure resistant solenoid valve and high-pressure stainless steel pipeline to ensure a high-pressure test environment
The connecting tubes and screws are made of corrosion-resistant and stainless steel materials, and the pipes are not easy to rust
Equipped with standard RS232 interface, which is convenient to PC connection and data transmission
Originality design
Automatic calibration and simple operation process
Supports various specifications samples
Automatic data storage and power-down memory functions
With a powerful data storage function, which can store up to 100,000 test records
User-defined test function and data analysis and reporting function
Safety protection
With shutdown function for pressure over-range, which protects the sensor.
Equipped with emergency stop switch to ensure the safety of the test process
Data security
Equipped with a four-level user security password policy to ensure the security of test data
The computer software fully complies with the requirements of GMP "Computerized System" and has functions such as user management, authority management, and data audit tracking.

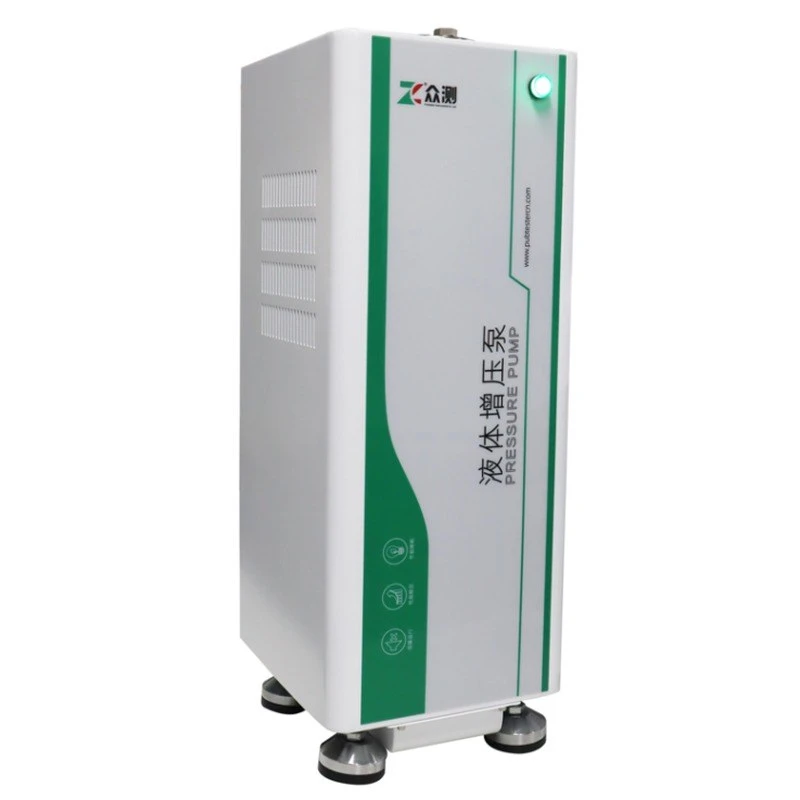

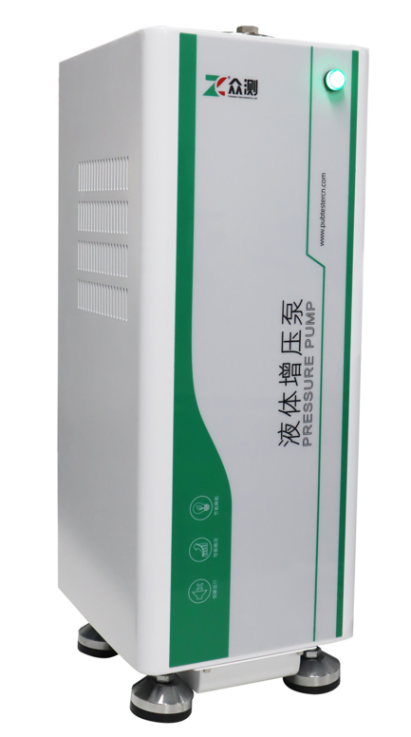

Self-developed booster pump
Reference Standard
Product Parameter
|
Specifications |
Specifications |
FCT-01 |
|
Test Range |
Test Range |
0~10Mpa (1400psi) |
|
Accuracy of Pressure Sensor |
Accuracy of Pressure Sensor |
0.5%FS |
|
Flowrate |
Flowrate |
0-40ml/s |
|
Test Methods |
Test Methods |
Constant flow rate and constant pressure, Support 5 catheter parameter settings |
|
Constant Flowrate |
Constant Flowrate |
Max 40ml/s |
|
Constant Pressure |
Constant Pressure |
Max 1400psi |
|
Test Volume |
Test Volume |
230ml |
|
Water Bath Temperature Control |
Water Bath Temperature Control |
RT+5℃~100℃ |
|
Temperature Deviation |
Temperature Deviation |
±0.5 ℃ |
|
Dimensions |
Main engine: 540mm(L)×400mm(W)×425 mm(H) |
Main engine: 540mm(L)×400mm(W)×425 mm(H) |
|
Dimensions |
Booster pump: 280mm(L)×265mm(W)×750 mm(H) |
Booster pump: 280mm(L)×265mm(W)×750 mm(H) |
|
Dimensions |
Water bath: 500mm(L)×285mm(W)×340 mm(H) |
Water bath: 500mm(L)×285mm(W)×340 mm(H) |
|
Dimensions |
Protective device: 650mm(L)×140mm(W)×245mm(H) |
Protective device: 650mm(L)×140mm(W)×245mm(H) |
|
Power Supply |
Power Supply |
AC220V50Hz/120V60Hz |
|
Net Weight |
Net Weight |
45Kg |
Applications
|
Basic Application |
Flow rate and pressure tests during power injection of central venous catheters |
|
Basic Application |
Flow rate and pressure tests during power injection of balloon dilatation catheters |
|
Basic Application |
Flow rate and pressure tests during power injection of peripherally inserted catheter |
Configuration
Standard Configuration:Instrument, 7-inch Touch screen, Booster pump, Water Bath, Protective device, Liquid reservoir and Micro printer.
Optional Configuration:Professional software
