Protective Clothing Testing Equipment
DFT-02
Auto Catheter Flow Rate Tester
DFT-02 Auto Catheter Flow Rate Tester is designed and manufactured according to Annex E of ISO 10555-1-2023, ISO8536-4, ISO 20698, EN1618, etc.
It is suitable for the determination of the flow rate of water through the intravascular catheters, catheters other than intravascular catheters and infusion sets. It adopts a high precision balance and touch screen to weigh and calculate flow and print test results automatically.
Share:
Product Features
Professional Technique
Independent R&D of hydrostatic pressure test device, which ensures the liquid level of 1000±10mm and the height can be adjusted over a wide range.
Two flow rate 525ml/min and 500ml/min are adjustable, which can meet the requirements of dual test standards.
Equipped with a constant temperature water tank to ensure that the test water temperature is 23 ℃, also the range is settable.

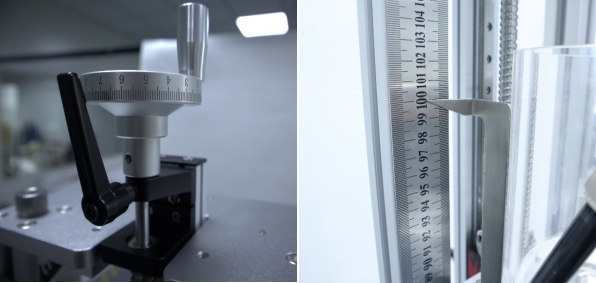

The uniquely designed up and down lifting structure can be adjusted in height, which is convenient for testing under different water pressures
Automatic timing and flow calculation
Ingenious design
7-inch HD color LCD screen, display test data in real time
With high-precision balance, which displays weighing data in real time, weigh outflow mass and calculate flow rate automatically
Multiple units are optional, and flow output units L/min, g/min, etc. can be displayed
With powerful data storage function, and can store up to 100,000 test records.
Automatic result determination, and printable test data
Supports historical data for quick viewing and printing
Data Security
Equipped with a four-level user security password policy to ensure the security of test data
The computer software fully complies with the requirements of GMP "Computerized System" and has functions such as user management, authority management, and data audit tracking (optional).
Reference Standard
Product Parameter
|
Specifications |
DFT-02 |
|
Balance Range |
0 - 3000g |
|
Accuracy |
0.1g |
|
Flow Rate |
525mL/min, 500ml/min |
|
Speed Deviation |
3mL/min |
|
Test Time |
1~99999s (Setting freely) |
|
Time Deviation |
≤ ± 1 |
|
Temperature |
15-55℃ |
|
Temperature Deviation |
≤ ±1℃ |
|
Power Supply |
220VAC 50Hz / 120VAC 60Hz |
|
Dimensions |
420(L) x 280(W) x 1680(H) |
|
Net Weight |
75Kg |
Applications
|
Basic Applications |
Intravascular catheters |
|
Basic Applications |
Catheters other than intravascular catheters |
|
Extended Applications |
Infusion set |
Configuration
Standard configuration:Instrument, 7-inch touch screen, Hydrostatic head, height adjustment device, constant temperature water tank
