Packaging Bag Testing Equipment
FT-01
Fogging Tester
FT-01 Fogging Tester is professionally designed for the fogging characteristics evaluation of volatile constituents of decorating materials used in cars and aircrafts, e.g. plastic articles, polyurethane, textiles, leather, adhesives, nonwovens and thermal forming elastomers at high temperature conditions. It also could be used for the fogging phenomenon test of high intensity discharge (HID) headlamps of cars.
Share:
Product Features
Wide range and high precision of temperature control device to support the combinations of non-standard test conditions.
Using brand temperature sensor, high and low temperature control is more accurate.
Conforms to multiple testing methods including gloss method, haze method and weighing method.
6 test stations can perform specimen test or blank test simultaneously.
Ensures accurate and reliable test data through stable running condition.
Controlled by microcomputer, with LED digital display screen and PVC operation panel, which is convenient to view the test data and results quickly.
Equipped with liquid level display according to different automotive standards.
Test Principles
The preconditioned specimen is heated and evaporates in the beaker; the volatile constituents condense on the glass plate or aluminum foil treated in cooling chamber. Take off the glass plate or aluminum foil when the condensation process is finished. The fogging characteristics could be obtained by measuring condensed constituent weight and fogging value on the glass plate or aluminum foil and comparing with the data before condensation process.
Measurement method
Gloss Method: the specimen is heated in the beaker and its volatile constituents are condensed on the cooling glass plate. The fogging value could be obtained by calculating and comparing the gloss values occurred before and after condensation process. (Standard configuration).
Haze Method: the specimen is heated in the beaker and its volatile constituents are condensed on the cooling glass plate. The fogging value of the specimen could be obtained by calculating and comparing the fogging values occurred before and after condensation process.. (Optional).
Weighing Method: the specimen is heated in the beaker and its volatile constituents are condensed on the cooling aluminum foil. The fogging value - the weight of condensed constituents could be obtained by analyzing the weight changes of aluminum foil occurred before and after condensation process. (Standard configuration, balance purchased separately).
Product Structure:

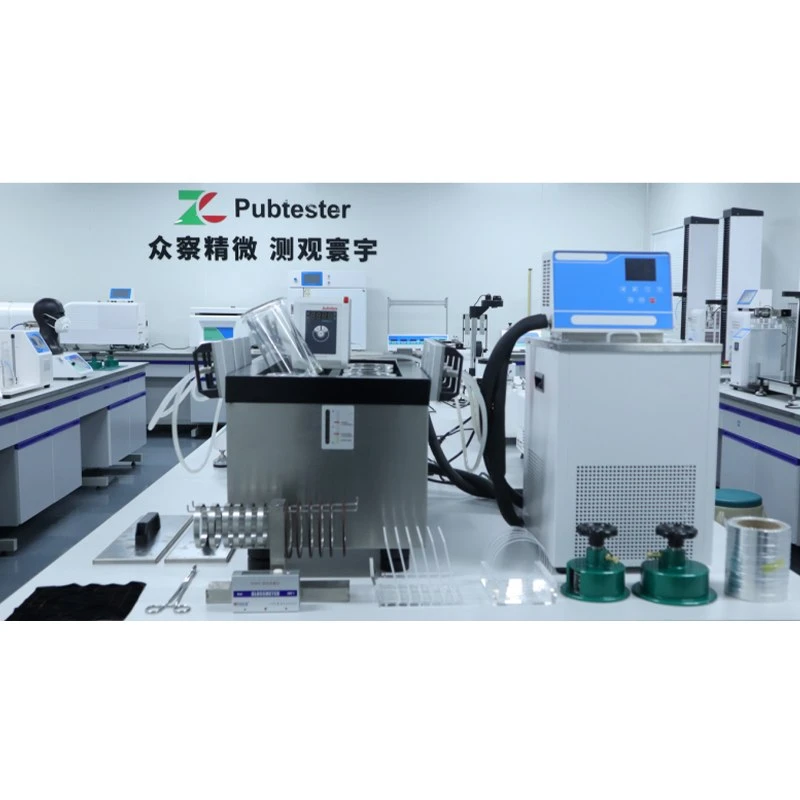

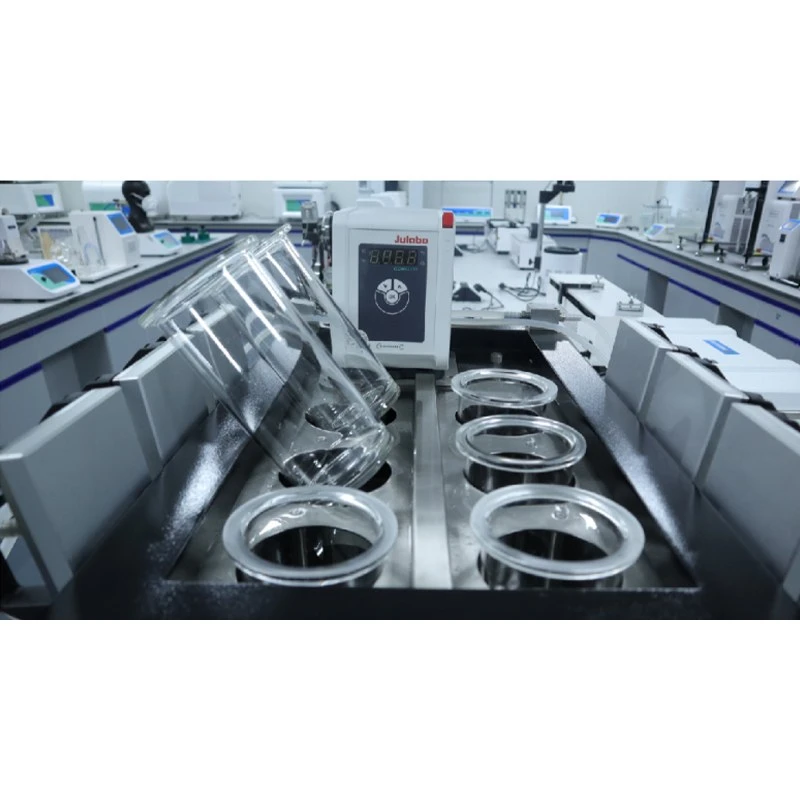

The instrument mainly consists of constant high-temperature bath, constant low-temperature bath, cooling plate, beaker, glass plate, meter, sample cutter and other accessories, through which it can perform the processes of sampling, heating, condensation and test.
Operation Steps:
Prepare specimens→switch on high and low temperature baths→clean beakers and glass plates→place specimens→place glass plate or aluminum foil→place cooling chamber→perform test for a specified period of time→take off glass plate or aluminum foil and place certain time→measure the gloss value, fogging value of glass plate or weight value of aluminum foil-→compare the data and obtain test results.
Reference Standard
Product Parameter
|
Specifications |
FT-01 |
|
Temperature Range of High-Temperature Bath |
Room Tem.~150℃ (Room Tem.~280℃ optional) |
|
Temperature Control Accuracy |
±0.1℃(150℃) |
|
Temperature Range of Low-Temperature Bath |
0~100℃ |
|
Temperature Control Accuracy |
±0.1℃ |
|
Size of High-Temperature Bath |
670 mm (L)× 490 mm(W)× 540 mm(H) |
|
Size of Low-Temperature Bath |
400 mm(L)× 220 mm(W)× 520 mm(H) |
|
Net Weight of High-Temperature Bath |
32 kg (except the weight of heat conducting medium) |
|
Net Weight of Low-Temperature Bath |
15 kg (except the weight of heat conducting medium) |
|
Power Supply |
220VAC 50Hz / 120VAC 60Hz |
Applications
|
Basic Applications |
Decorating Articles of Cars |
Suitable for high-temperature volatile component testing of automotive interior materials, such as panels, knobs, seat cushions, floor leather, ceiling materials, etc. |
|
Basic Applications |
Plastic Particles |
Suitable for high temperature volatile component test of plastic raw material particles |
|
Extended applications |
Leather |
Suitable for leather volatility test under high temperature conditions |
|
Extended applications |
Carpets |
Suitable for carpet volatility test under high temperature conditions |
|
Extended applications |
Adhesive Products |
Suitable for adhesive products volatility test under high temperature conditions |
|
Extended applications |
High Intensity Discharge Lamps |
Suitable for the determination of high temperature atomization phenomenon of front xenon lamps |
|
Extended applications |
Sponge, Rubber and EPE Thermal Insulation Materials |
Suitable for high temperature volatility test of sponge, rubber, EPE insulation materials, etc. |
Configuration

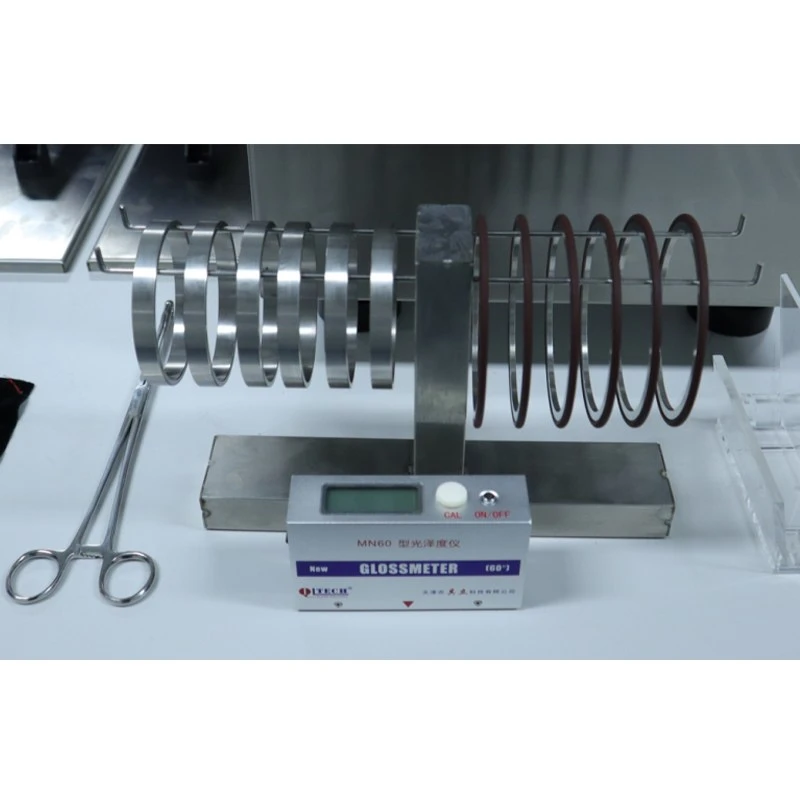

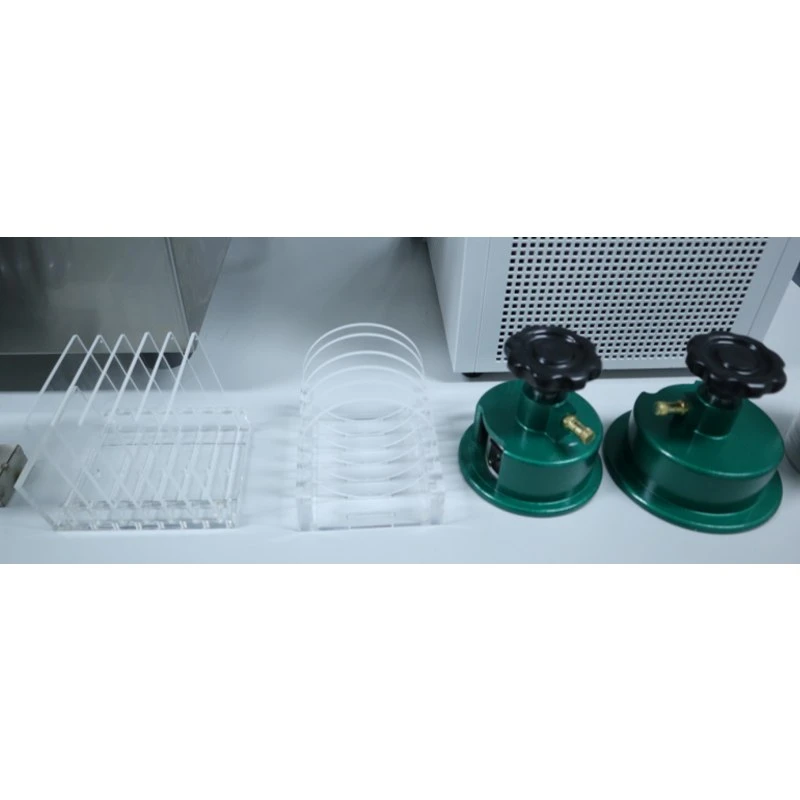

Standard configuration:Instrument, Constant Temperature Control Device, Gloss Meter, Sample Clamp Ring, Beaker, Fluorine Rubber O-ring, Rubber Fixing Ring, Rectangular Glass Plate, Round Glass Plate, Aluminum Foil, Round Sample Cutter of Aluminum Foil, Lid, Stand of Glass Plate, Round Sample Cutter and Accessory Stand
Optional configuration:Haze Meter, Analytical Balance(0.01mg), Beaker, Fluorine Rubber O-ring, Rectangular Glass Plate, Round Glass Plate, Aluminum Foil, Round Sample Cutter of Aluminum Foil, Stand of Glass Plate, Heating Fluid, DIDP and DOP
