Glass Bottle Testing Equipment
BTT-02

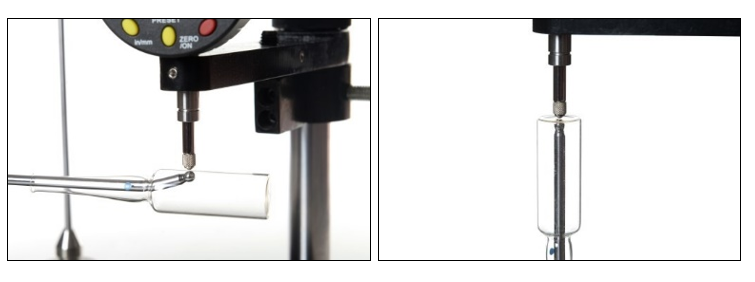

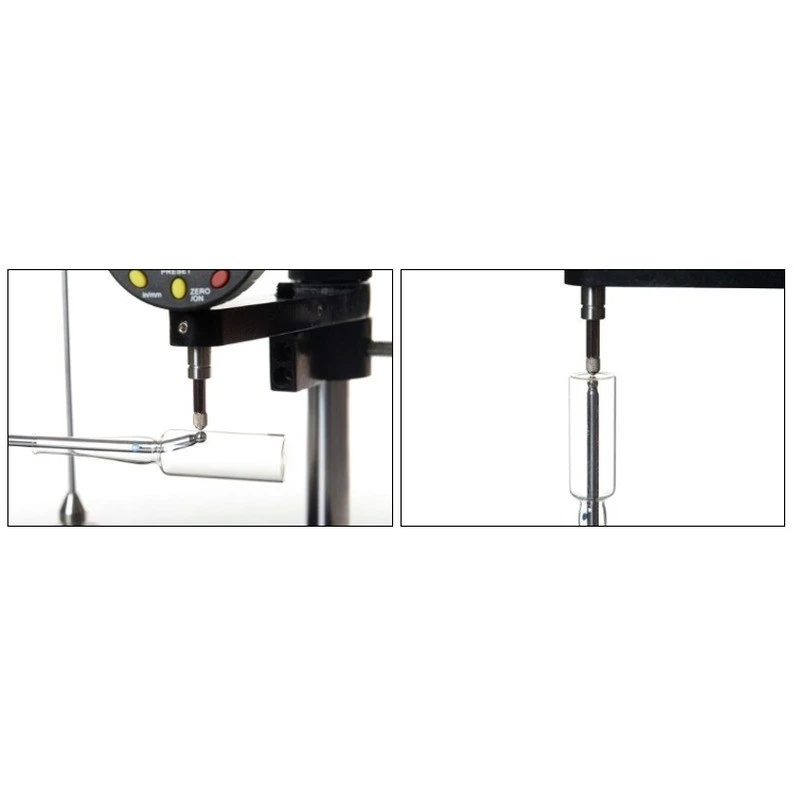

Bottle Sidewall & Bottom Thickness Tester
BTT-02 Bottle Sidewall & Bottom Thickness Tester is used for test sidewall and bottom thickness of ampoules, vials, infusion bottles, beer bottles, plastic bottles in food, medicine, cosmetics and other industries.
Share:
Product Features
Specialty design
Dual test functions: sidewall and bottom thickness;
7-inch color touch screen with intelligent data processing functions;
Equipped with a micro printer to print each test result and statistical Max. value, Min. value and average value;
Using high-speed processing chips, the operating speed is greatly improved;
Adopt electronic high-precision displacement sensor;
Calibrate automatically;
Equipped with standard RS232 interface, which is convenient to PC connection and data transmission;
Pubtester also provides professional customization services to meet users’ personalized needs in fixtures, software, etc.;
Equipped with three measuring rods, suitable for different bottles;
Various rotation and distance adjustment mechanisms adopt convenient knob and guide rail structures to facilitate operation and improve testing efficiency;
With a powerful data storage function, which can store up to 100,000 test records
Data export device (Optional).
Safety Protection
Intelligent configurations such as limit protection, overload protection, and power-off memory effectively ensure safety operation;
Equipped with a limit protection switch to prevent clamp collision caused by displacement overload;
With an over-range shutdown function to protect the sensor.
Data Security
Equipped with a four-level user security password to ensure the security of test data (optional);
The computer software fully complies with the GMP "Computerized System" requirements and has user management, authority management, data audit tracking, electronic signature, etc. (optional).
Reference Standard
Product Parameter
|
Specifications |
BTT-02 |
|
Thickness Range |
0-10mm |
|
Accuracy |
±0.1%FS |
|
Resolution |
0.001mm |
|
Repeatability |
0.01mm |
|
Specimen Diameter |
10 ~ 120mm (Customizable) |
|
Specimen Height |
10 ~ 300mm (Customizable) |
|
Power Supply |
AC 220V 50Hz/120V 60Hz |
|
Instrument Dimension |
500mm(L)×300mm(W)×685mm(H) |
|
Net Weight |
23kg |
Applications
|
Basic Application |
Ampoules, vials, oral liquid bottles, infusion bottles, etc. |
|
Basic Application |
Liquor bottles, wine bottles, etc. |
|
Basic Application |
Plastic bottles, preforms, etc. |
|
Basic Application |
Beer bottles |
Configurations
Standard:Instrument, 7" touch screen, Measuring rod (sidewall and bottom), Micro printer.
